Dejavoo Z9 Wireless Card Terminal
A wireless card terminal designed for secure chip, swipe, and contactless payments in mobile and in-store environments.

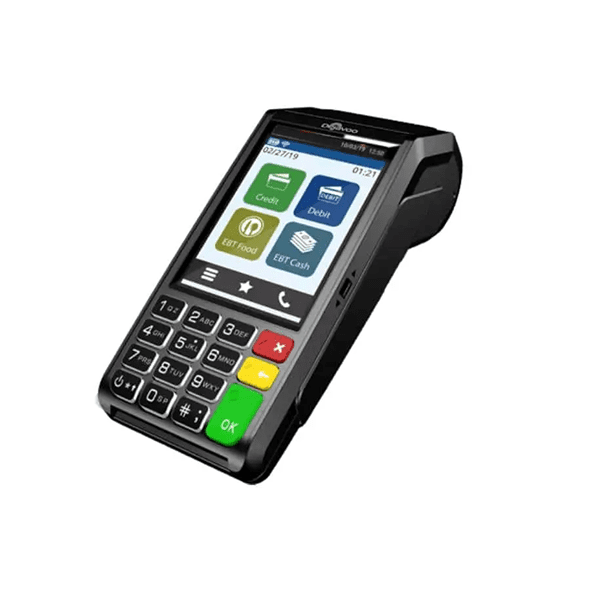

Dejavoo Z9 Wireless Card Terminal
A wireless card terminal designed for secure chip, swipe, and contactless payments in mobile and in-store environments.
A Mobile Wireless Terminal Built for Pay-at-Table and On-the-Go Checkout

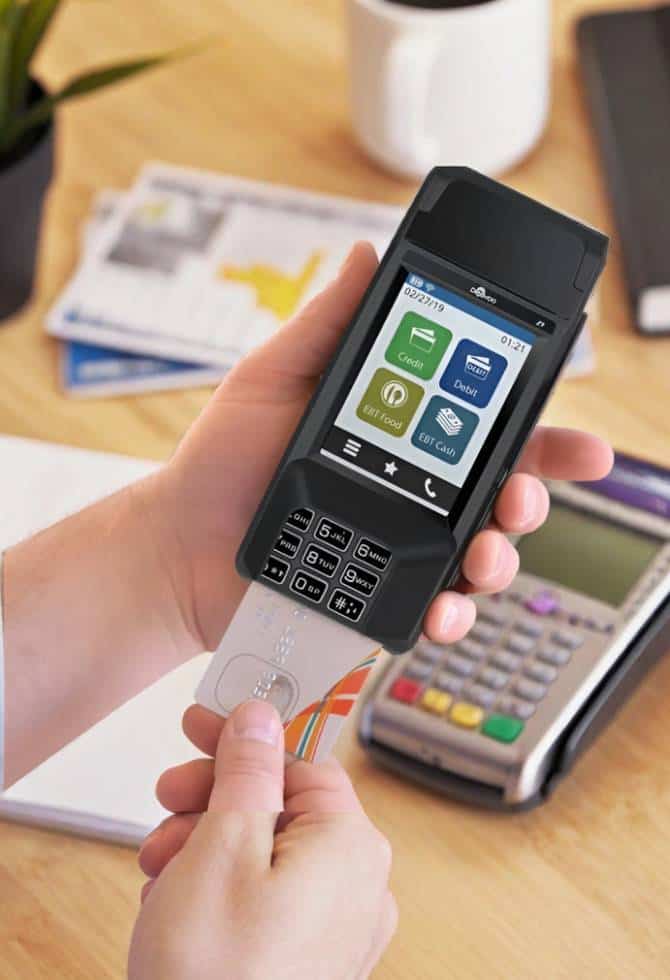

The Dejavoo Z9 is a portable payment terminal in Dejavoo’s Z-line family, designed for businesses that need to take payments away from the counter, think pay-at-the-table, curbside, delivery, events, and line-busting during rush hours.
It pairs a 4” color touchscreen (with electronic signature capture) with an integrated thermal printer, so you can complete the transaction and hand over a receipt without returning to the register.
Benefits of the Dejavoo Z9
- Accept the Payment Types Customers Expect: Accepts EMV chip, contactless NFC tap, and magnetic stripe swipe payments, with support for PIN debit workflows when enabled.
- Move Faster with a Truly Mobile Checkout: Designed for mobile checkout, allowing merchants to process payments away from the counter using wireless connectivity.
- Receipts Print On-Device: Prints receipts directly on the device with a built-in thermal printer, reducing the need for external hardware.
- Choose the Right Connectivity Model: Available in multiple connectivity configurations, including Wi-Fi-only and Wi-Fi with cellular options to match different business needs.
- Optional Scanning Capabilities: Offers optional scanning capabilities through a 5MP camera supporting 1D and 2D barcodes, with a Zebra imager available on select configurations.
- Security You Can Deploy with Confidence: Built with PCI PTS–certified security to support secure, card-present transactions across the Z9 lineup.
Dejavoo Z9 Device Specifications and Capabilities
- The Dejavoo Z9 supports secure card-present transactions via EMV chip payments compliant with ISO 7816 at EMV Level 1 and Level 2, along with triple-track, bidirectional magnetic stripe acceptance for Tracks 1, 2, and 3.
- Contactless payments are supported via NFC, enabling tap-to-pay transactions.
- The device is PCI PTS certified, with certification levels varying by hardware revision within the Z9 family.
- The terminal features a 4-inch color touchscreen that supports on-screen signature capture for customer verification.
- A built-in thermal printer is included; printer specifications vary by model configuration, including differences in paper width and print speed.
- The form factor is designed for portability, with commonly cited dimensions of approximately 183 × 76 × 50 mm and a weight of roughly 350 grams.
- Wireless connectivity options vary by Z9 model and may include Wi-Fi (typically 2.4 GHz), 4G LTE, and other supported radio technologies across the Z9 lineup.
- Hardware interfaces include a Micro-USB OTG port and slots for SIM, SAM, and TF cards, with TF card storage support commonly referenced at up to 64 GB.
- Power is supplied by a rechargeable 3,100 mAh lithium-ion battery with 5V/2A DC charging support.
Initiate Sales with Ease on the Dejavoo Z9
Run a Credit Sale
- Tap Credit → Sale.
- Enter the amount → OK.
- Tap (contactless) or insert chip card.
- Receipt prints when approved.
Run a Debit Sale
- Tap Debit → Sale.
- Enter the amount → OK.
- Tap/swipe/insert card (as prompted).
- Customer enters PIN → OK.
Keyed (Manual) Credit Sale
- Tap Credit → Sale → enter amount → OK.
- When prompted to insert card, press OK and enter the card number.
- Follow prompts (expiration/ZIP, etc., depending on configuration).
Process a return on the Dejavoo Z9
- Tap Credit → Return.
- Enter the return amount → OK.
- Confirm amount and enter manager password if prompted (the default is commonly 1234, unless changed).
- Present the card (tap/swipe/insert or manual entry if enabled).
Void a Transaction on the Dejavoo Z9
Void (Standard)
- Tap Credit → Void.
- Enter the void amount → OK, confirm if prompted.
- Enter manager password if prompted.
- Present card (tap/insert) to complete.
Void by Transaction Number
- Open Favorites → Void Transaction.
- Enter manager password if prompted → choose By Transaction #.
- Enter the transaction number → confirm to complete and print the void receipt.
Settle (Close) Your Batch on the Dejavoo Z9
- Open Favorites → Settle Daily Batch.
- Enter manager's password if prompted.
- The terminal connects, settles, and prints the settlement report.
Ready to Set Up the Dejavoo Z9 with Host Merchant Services?
Want a handheld that can scan, print, and take payments, without forcing your team back to the counter? Request pricing and deployment options for the Dejavoo P8 through Host Merchant Services, and we’ll help you choose the right hardware configurations for your workflow.
"*" indicates required fields
Frequently Asked Questions
Does the Dejavoo Z9 support tap-to-pay?
Yes. Dejavoo supports contactless/NFC acceptance for the Z9, alongside EMV chip and magstripe.
Is the Z9 Wi-Fi only, or can it use cellular data?
Both options exist across Dejavoo’s Z9 lineup. There are two models (Wi-Fi-only and Wi-Fi/4G), and the Z9 also includes cellular radios.
Does the Z9 print receipts? What paper does it use?
Yes, Z9 models include a built-in thermal printer. Printer details vary by model (examples include 48mm or 58mm print width and different print speeds).
Is the Dejavoo Z9 a touchscreen terminal?
Yes. The Z9 has a 4” color touchscreen where you can capture an electronic signature.
Does the Z9 have a camera or barcode scanning?
Some configurations do. There’s a 5MP camera/scanner with support for 1D/2D barcode scanning and an optional Zebra barcode imager.
What’s the default manager password?
Typically, the default manager password is 1234.
How do I settle the batch on the Z9?
Favorites → Settle Daily Batch, then enter the manager password if prompted; the terminal settles and prints the report.
